Good for the industrial level of workload that is running in cycle 24/7 hence the generator is made sure to be able to work long hours and still be at its best performancerience.
Technical Data | 250 KVA |
---|---|
Genset Specification | 250 KVA |

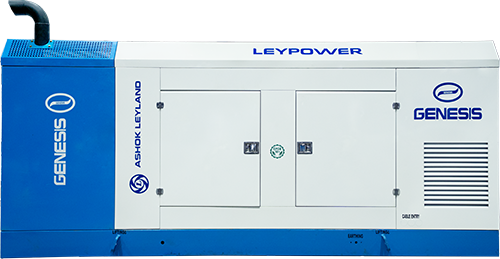

Genset Model | GP 250 |
prime Power (KVA/KW) | 250/200 |
Current Amp | 350 |
Power Factor | 0.8 |
No of Phases | 3 Phase/1 Phase |
LxBxH (mm) | 4700X1600X2020 |
Fuel Tank Capacity | 350 Ltrs. |
Engine Specification | |
Make | Ashok Leyland |
Model | AL 8NTIDG6 |
Rated BHP | 303.1 |
Aspiration Naturally Aspirated | Turbo charged |
No of Cylinder | 6 |
Fuel Consumption @ 75 % load with | 40.3 Ltrs. |
Governor Mechanical A1 | Eletronic A0 |
Cooling System Water Cooled | Water Cooled |
Alternator Specification | |
Make | ley power |
Enclosure | IP 23 |
Voltage Regulation | +/- 1 % |
Class of Insulation | H |
Voltage | 415 |
Power Cable Size | 2 X 150 Sqm.m(3 1/2 Core) |
Price (Exclude GST & Transportation) | ₹ 18,79,209 |
