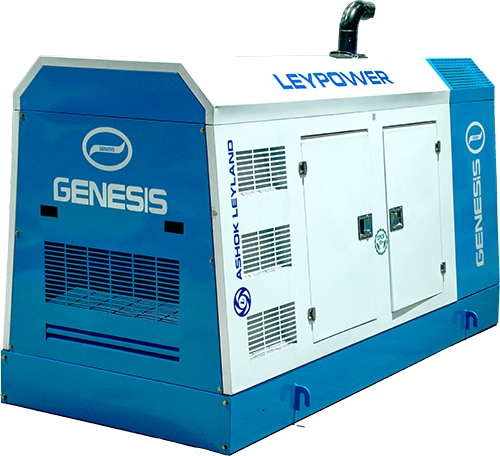

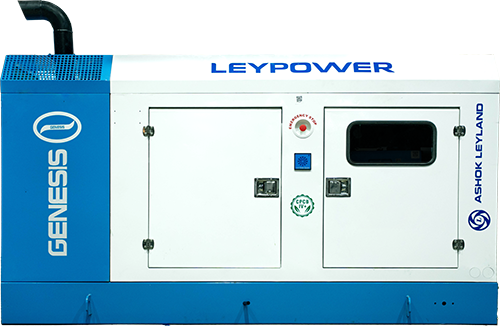

Good for very heavy duty workload, this type of dc is usually used in apartment complexes or industries.
Technical Data | 125 KVA |
---|---|
Genset Specification | 124 KVA |
Genset Model | GP 125 |
prime Power (KVA/KW) | 125/100 |
Current Amp | 175 |
Power Factor | 0.8 |
No of Phases | 3 Phase/1 Phase |
LxBxH (mm) | 3300X1250X1876 |
Fuel Tank Capacity | 150 Ltrs. |
Engine Specification | |
Make | Ashok Leyland |
Model | AL 6CTIDG6 |
Rated BHP | 155.5 |
Aspiration Naturally Aspirated | Turbo charged |
No of Cylinder | 6 |
Fuel Consumption @ 75 % load with | 21.6 Ltrs. |
Governor Mechanical A1 | Eletronic A0 |
Cooling System Water Cooled | Water Cooled |
Alternator Specification | |
Make | ley power |
Enclosure | IP 23 |
Voltage Regulation | +/- 1 % |
Class of Insulation | H |
Voltage | 415 |
Power Cable Size | 150 Sqm.m(3 1/2 Core) |
Price (Exclude GST & Transportation) | ₹ 8,93,766 |
